Fourplex 01

SK & MB

Gross Building Area: 311 sq. m. (3348 sq. ft)

1–3 1 Per unit

4-unit home designed to fit in a variety of neighbourhood contexts, including narrower lots. Includes an accessible-ready unit.

Download the summary package to get a high-level plan overview and sign up to be notified when the final architectural design packages are available.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

A 3D rendering of a three storey home in a autumn neighbourhood. The exterior features light wood cladding, clean lines, and large windows that bring in natural light. A private balcony on the second floor.

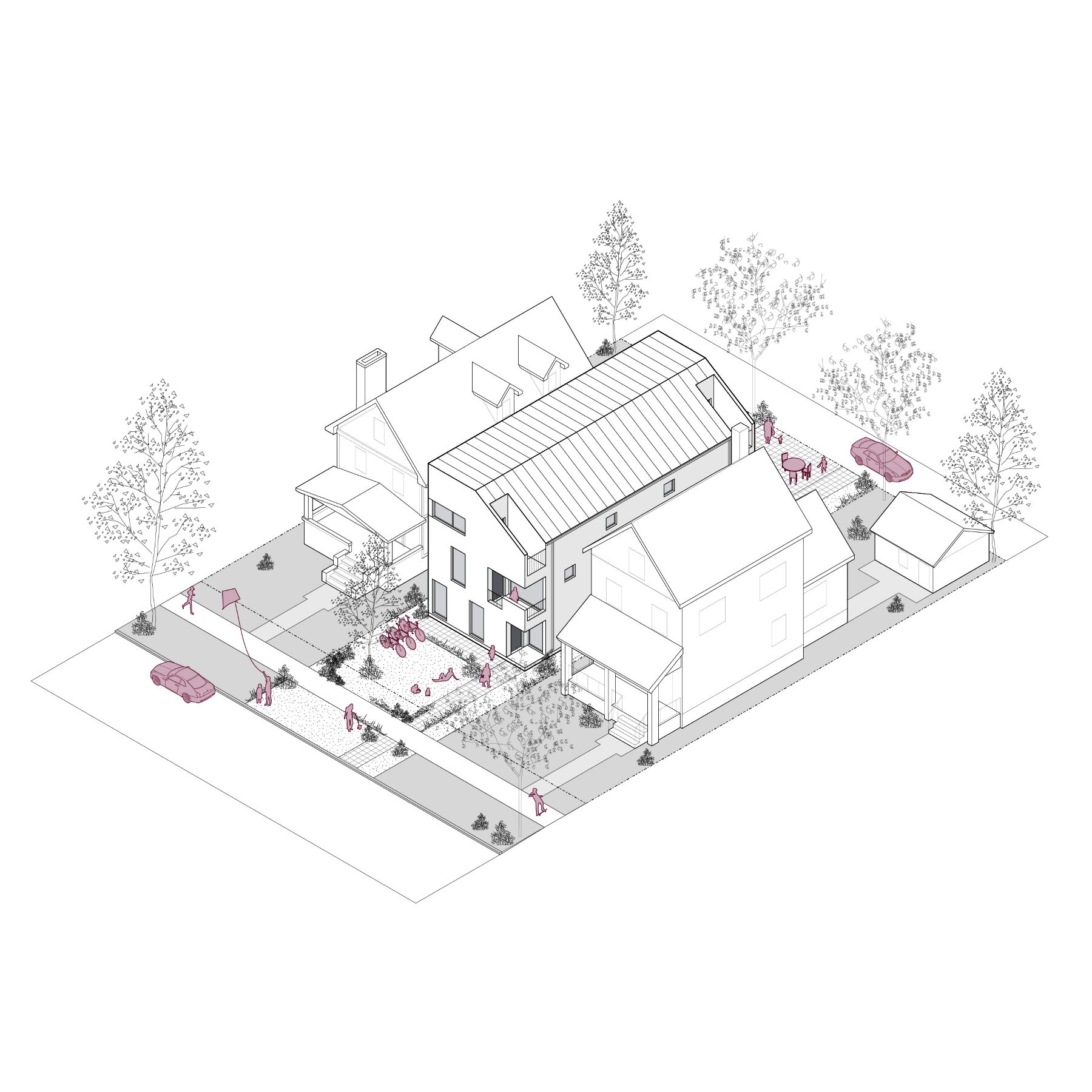

A 3D line rendering of a structure measuring 333 square meters (3,580 square feet). The three-storey building is shown with its four individual units, each featuring separate entrances. The rendering highlights the structure's suburban integration, surrounded by homes, driveways, and landscaping.

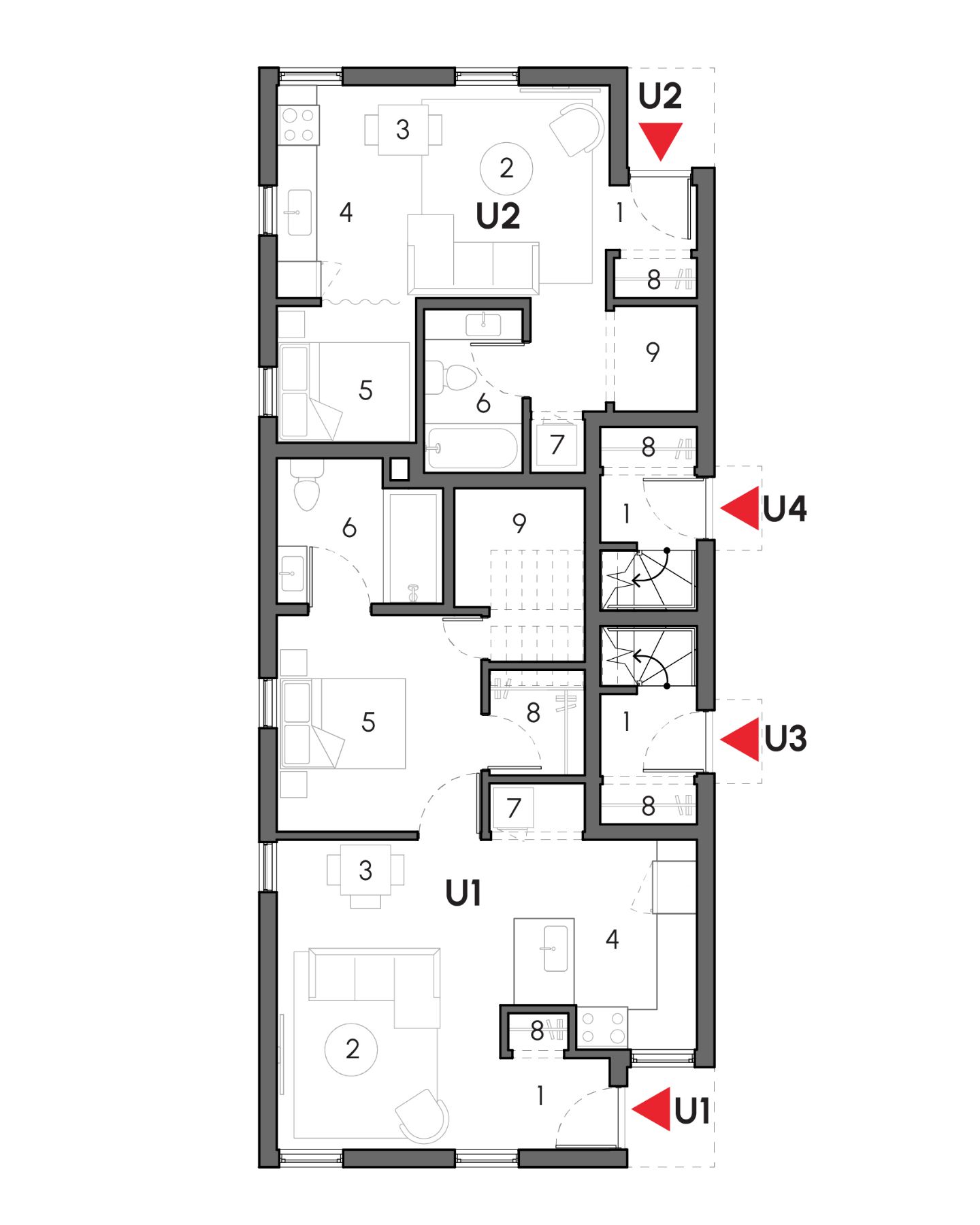

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. Terrace/Patio
11. N/A
