Accessory Dwelling Unit 02

SK & MB

Gross Building Area: 105 sq. m. (1127 sq. ft)

1 1

2-storey Accessory Dwelling Unit with a double garage.

Download the summary package to get a high-level plan overview and sign up to be notified when the final architectural design packages are available.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

A 3D rendering of a two-storey accessory dwelling unit (ADU) with a rust-colored metal facade and a sleek, minimalist design. The upper floor has large windows, while the lower level serves as a garage.The ADU is in a quiet alleyway, surrounded by traditional garages and fences.

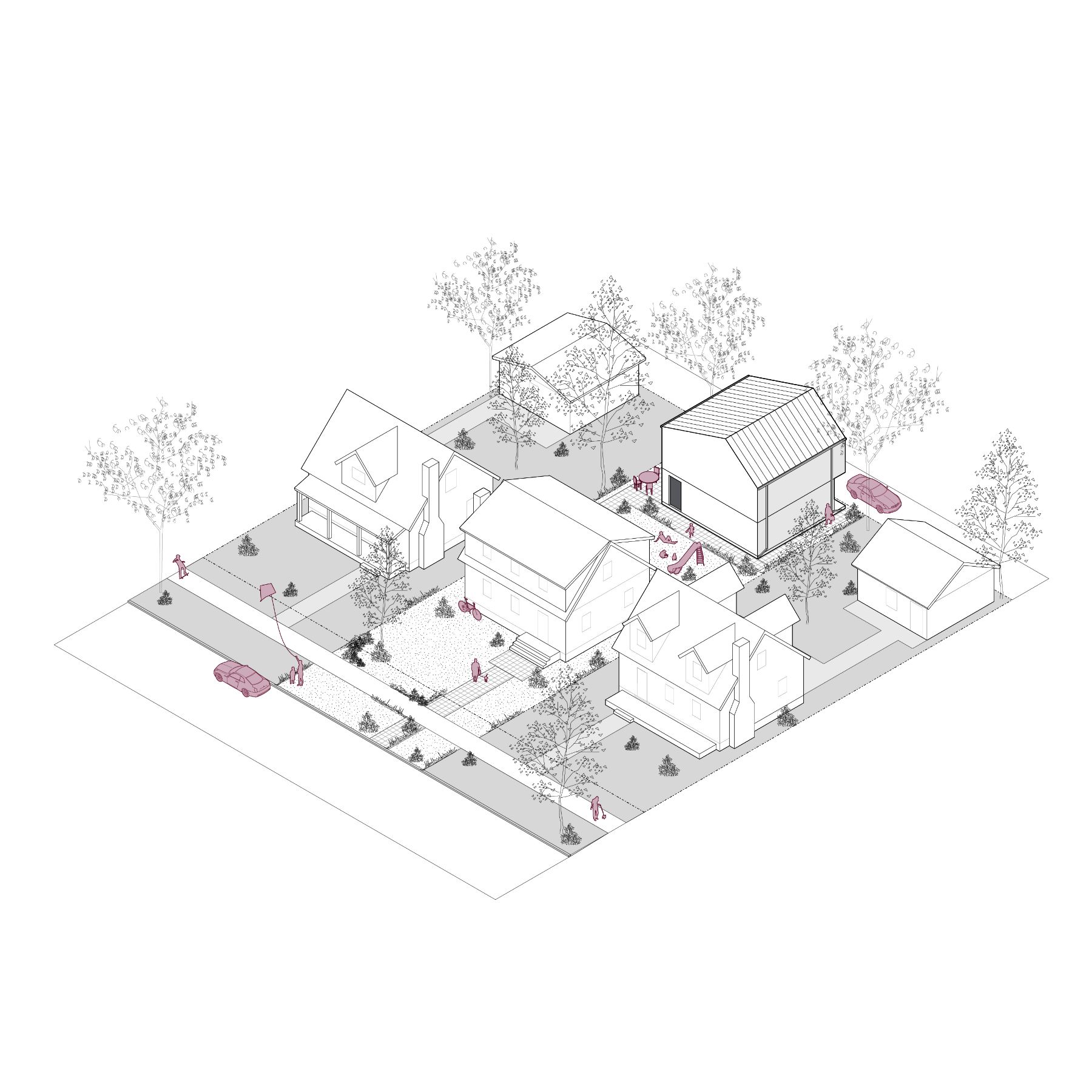

A 3D line rendering of a unit measuring approximately 53 square meters (570 square feet). The two-storey design is depicted with a focus on vertical space optimization. The rendering shows the unit integrating into a neighbourhood.

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. N/A
11. Open to below
