Fourplex 02

QC

Gross Building Area: 413 sq. m. (4443 sq. ft)

2–3 1 Per unit

4-unit home designed to fit in a variety of neighbourhood contexts or a 2-unit stacked townhome for very narrow urban lots. Includes accessible-ready units.

Download the summary package to get a high-level plan overview and sign up to be notified when the final architectural design packages are available.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

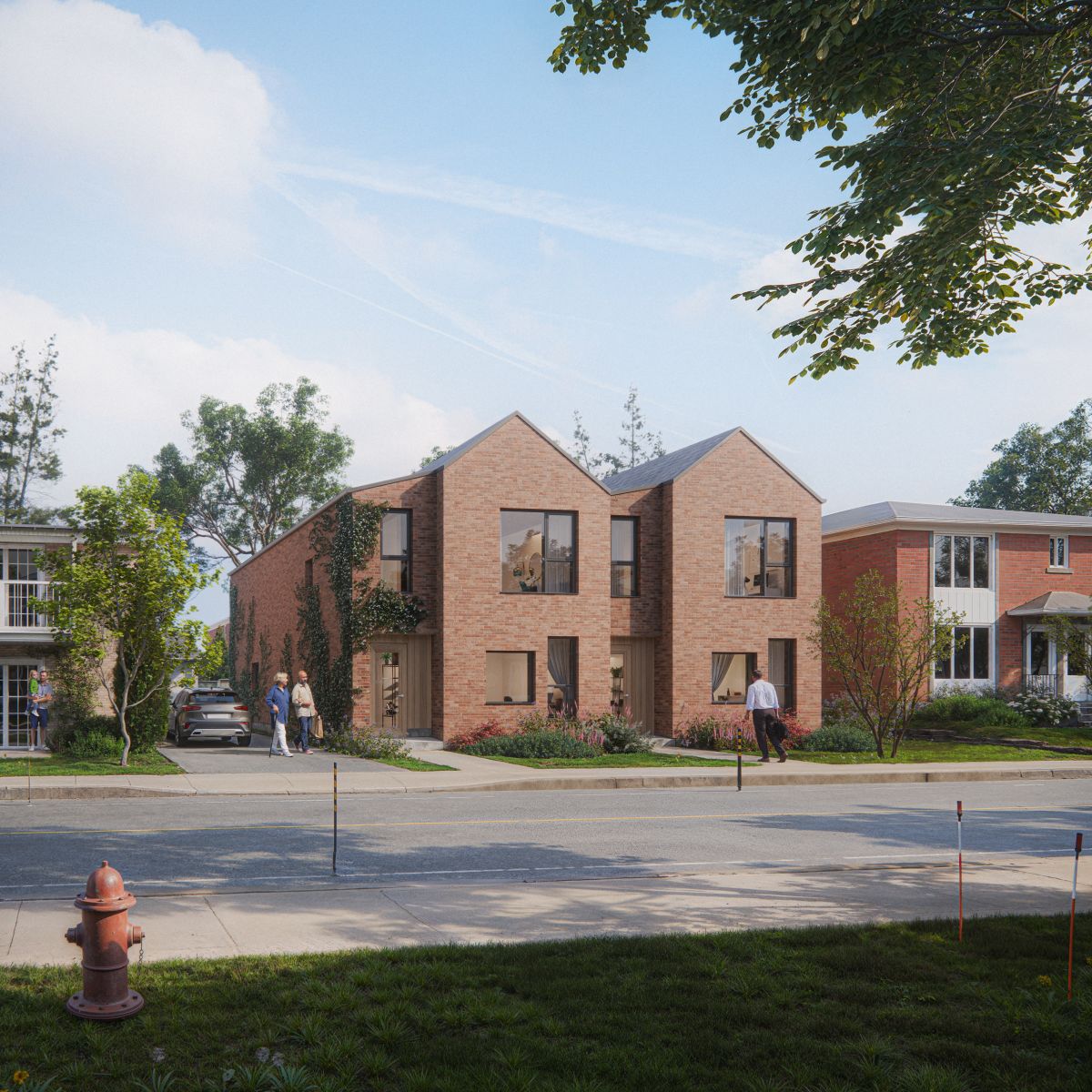

A 3D rendering of a brick fourplex with a pitched roof and lush greenery climbing its facade.

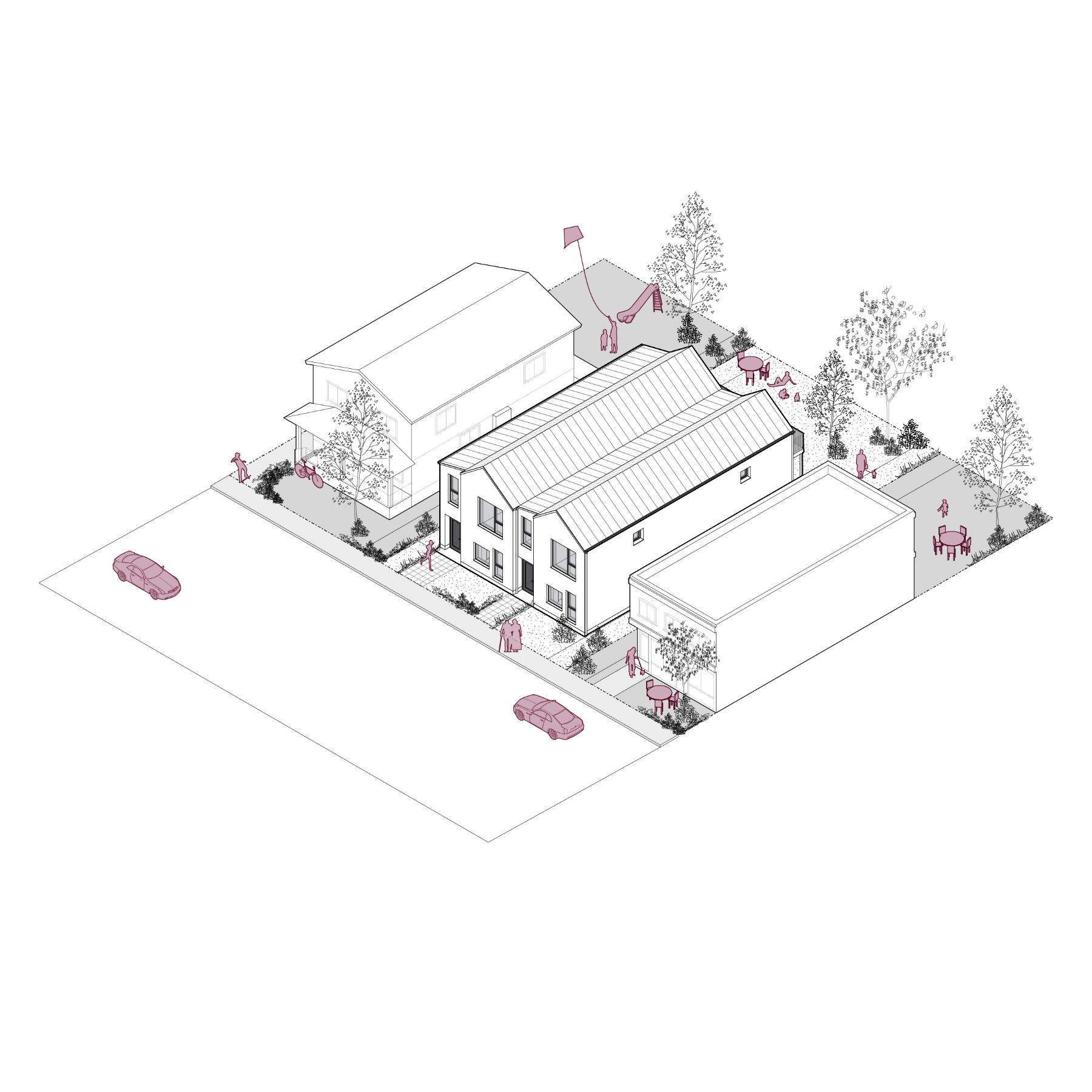

A 3D line rendering of a two storey fourplex, covering approximately 207.1 sq. m (2,229 sq. ft.). The image shows the building’s integration within a neighbourhood, surrounded by sidewalks, trees, parked cars, and adjacent structures.

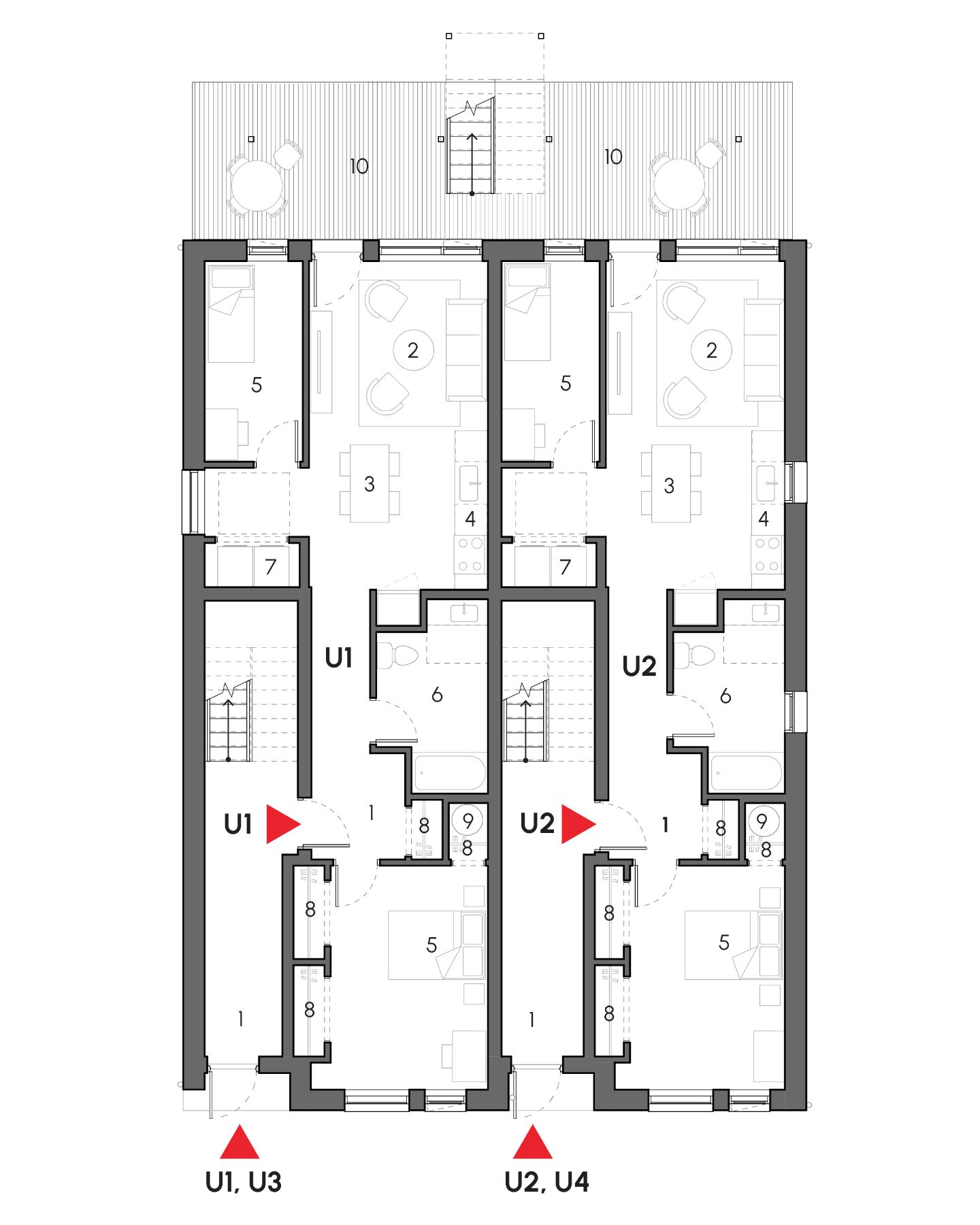

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. Terrace/Patio
11. N/A
