Accessory Dwelling Unit 01

QC

Gross Building Area: 46 sq. m. (493 sq. ft)

0 1

Single-storey Accessory Dwelling Unit, accessible-ready.

Download the summary package to get a high-level plan overview and sign up to be notified when the final architectural design packages are available.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

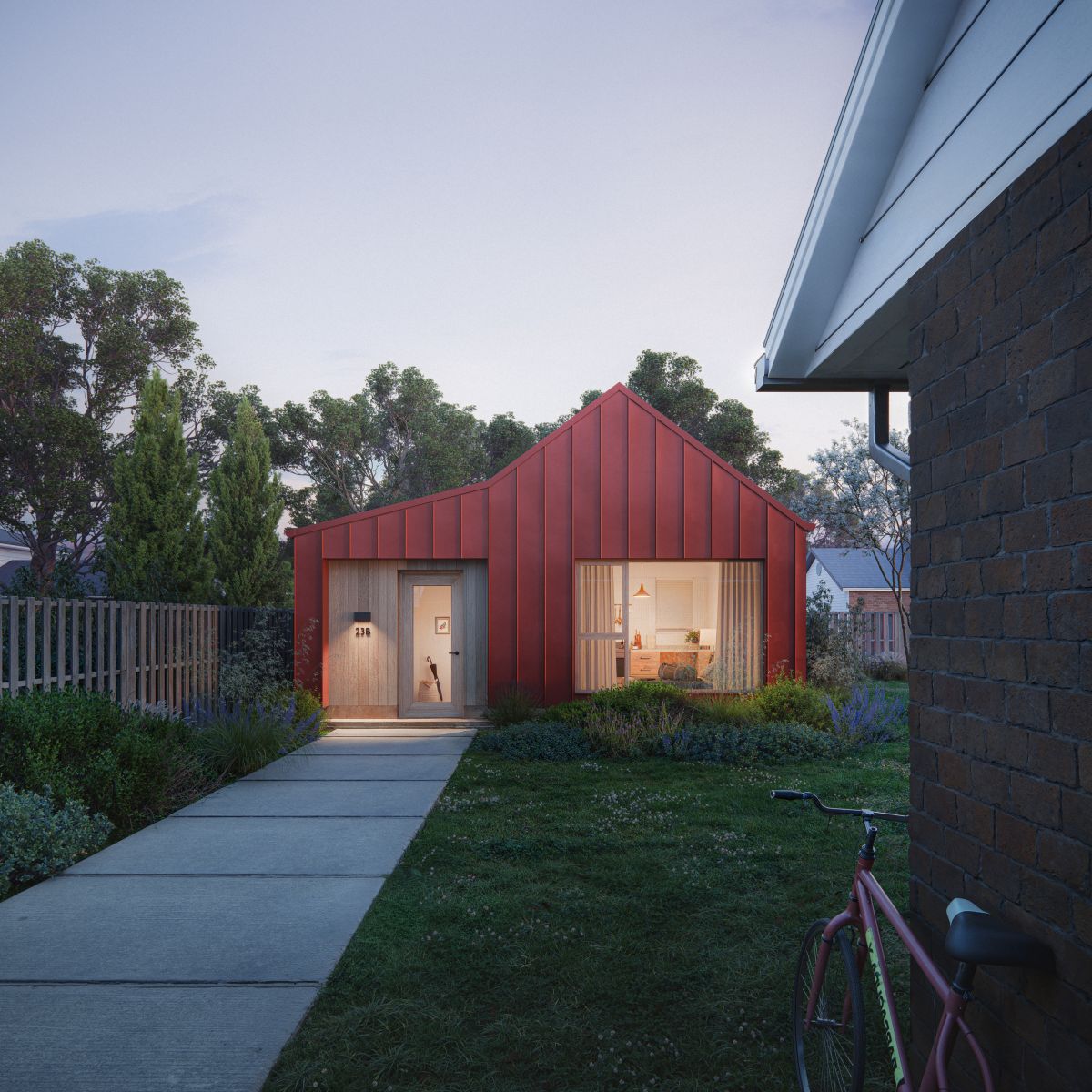

A 3D rendering of a modern backyard ADU with a bold red metal facade, with a lush garden setting.

A 3D line rendering of a single unit accessory dwelling unit (ADU), covering approximately 46.6 sq. m (502 sq. ft.). The image has a single storey structure situated in a residential neighbourhood, surrounded by detached homes, sidewalks, trees, and backyards.

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. N/A
11. N/A
