Fourplex 02

ON

Gross Building Area: 303 sq. m. (3264 sq. ft)

1–3 1 Per unit

4-unit home designed to fit in a variety of neighbourhood contexts. Includes an accessible-ready unit.

Download the summary package to get a high-level plan overview and sign up to be notified when the final architectural design packages are available.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

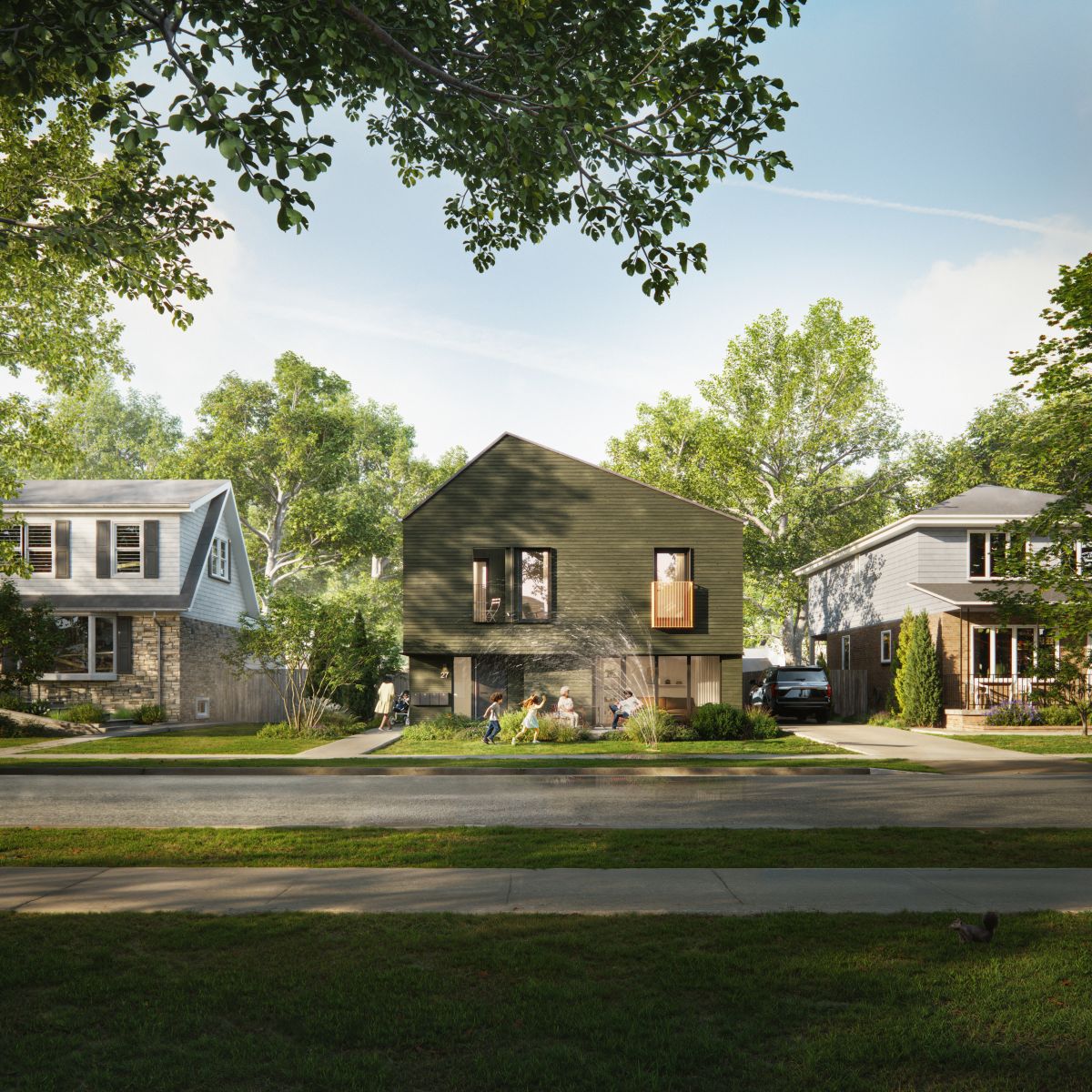

A 3D rendering of a home with a dark green facade in a neighbourhood.

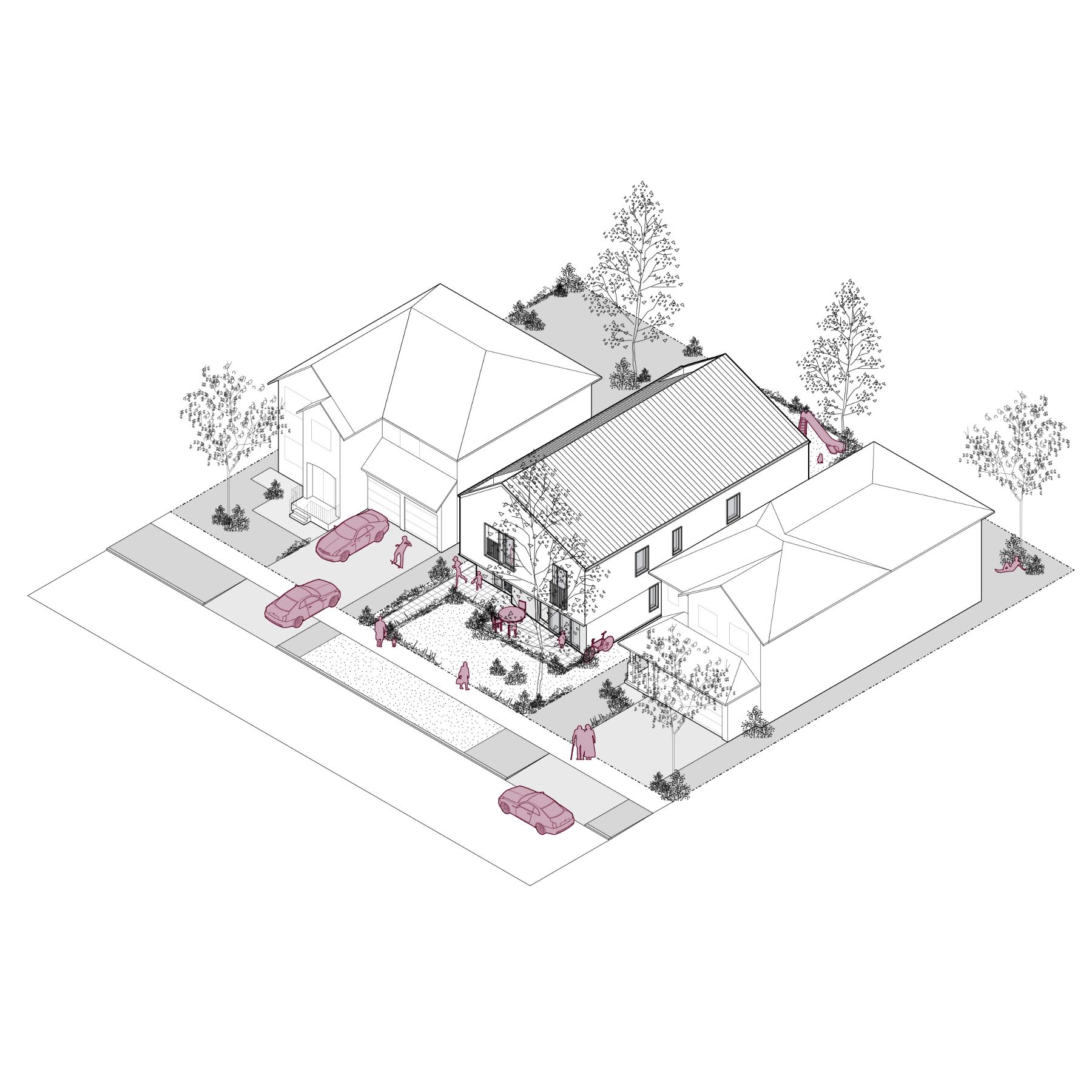

A 3D line rendering of a fourplex, covering approximately 161.5 sq. m (1,738 sq. ft.). The image illustrates the building's two-storey layout within a neighbourhood.

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. Terrace/Patio
11. N/A
