Fourplex 01

BC

Gross Building Area: 374 sq. m. (4027 sq. ft)

1–3 1–2.5 Per unit

4-unit home designed to fit in a variety of neighbourhood contexts, including narrower lots. Includes optional adaptable units.

Download the summary package to get a high-level plan overview and sign up to be notified when the final architectural design packages are available.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

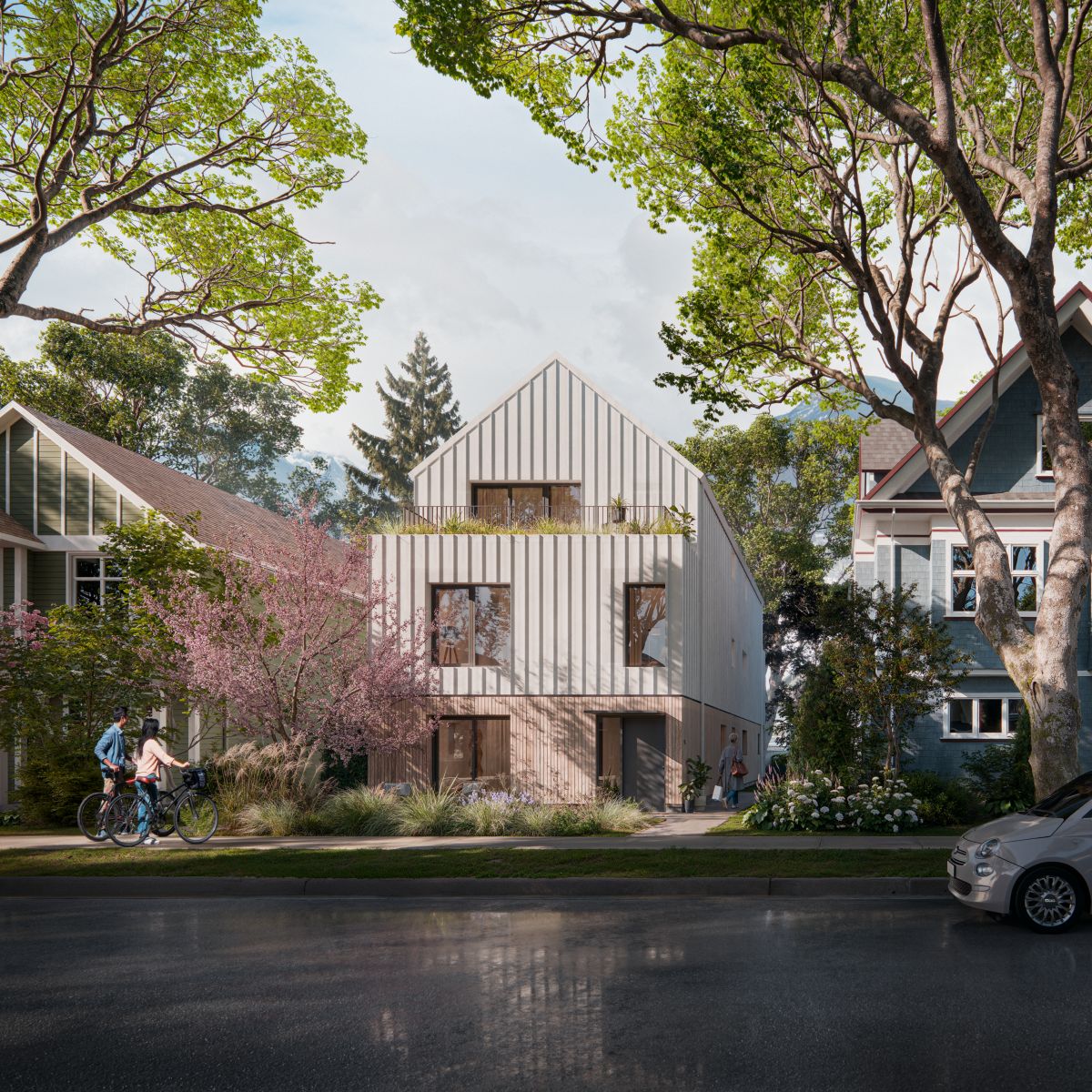

This rendering showcases a home with a gabled roof and vertical siding, blending design with a natural setting. The large windows and there is a second-floor terrace with greenery.

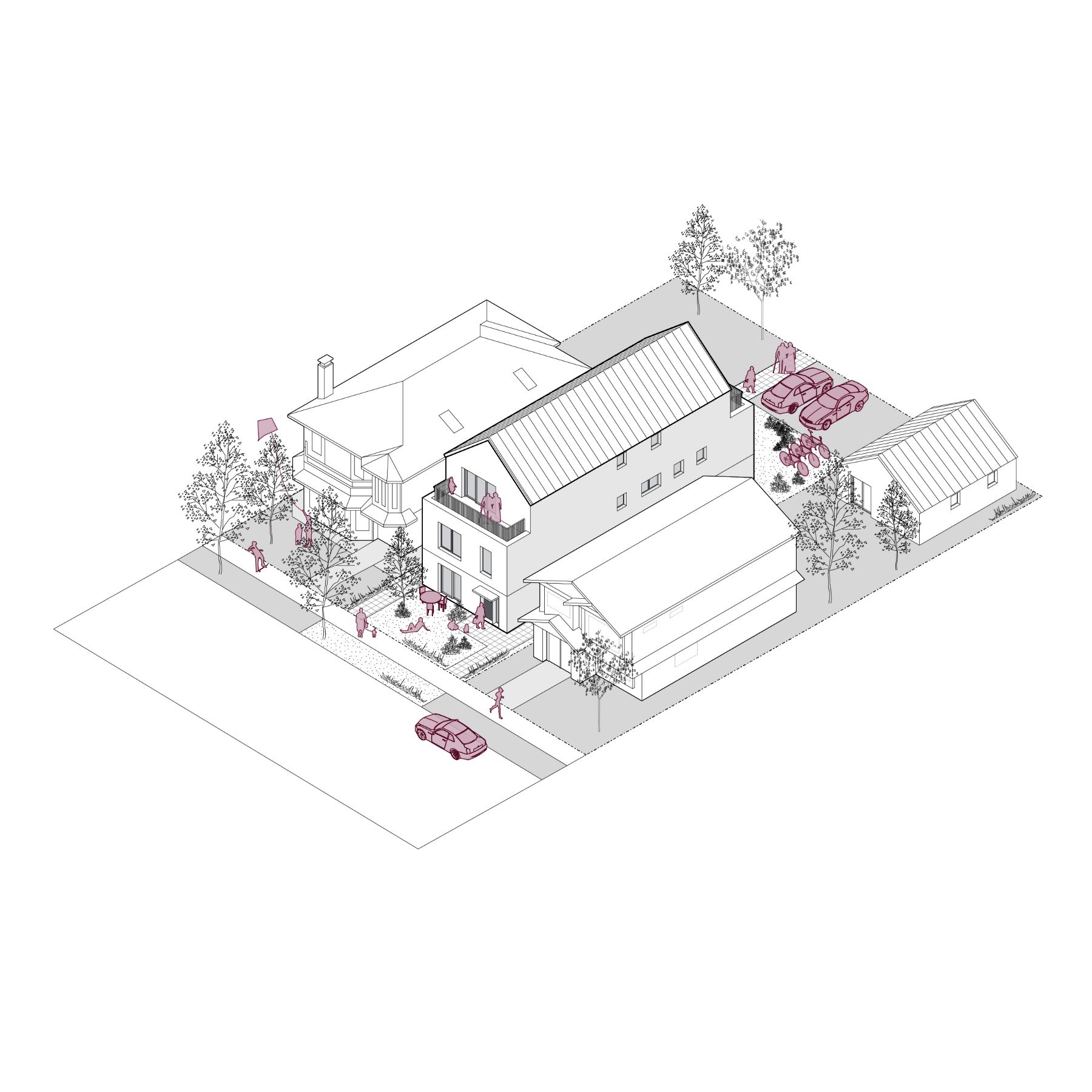

A 3D line rendering of Fourplex 01, spanning approximately 2,400 square feet in total, with each unit covering about 600 square feet. The model shows the building in a suburban neighbourhood, emphasizing its communal design and shared amenities.

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. Terrace/Patio
11. Office
