Accessory Dwelling Unit 02

BC

Gross Building Area: 94 sq. m. (1010 sq. ft)

2 1.5

2-storey Accessory Dwelling Unit.

Download the summary package to get a high-level plan overview and sign up to be notified when the final architectural design packages are available.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

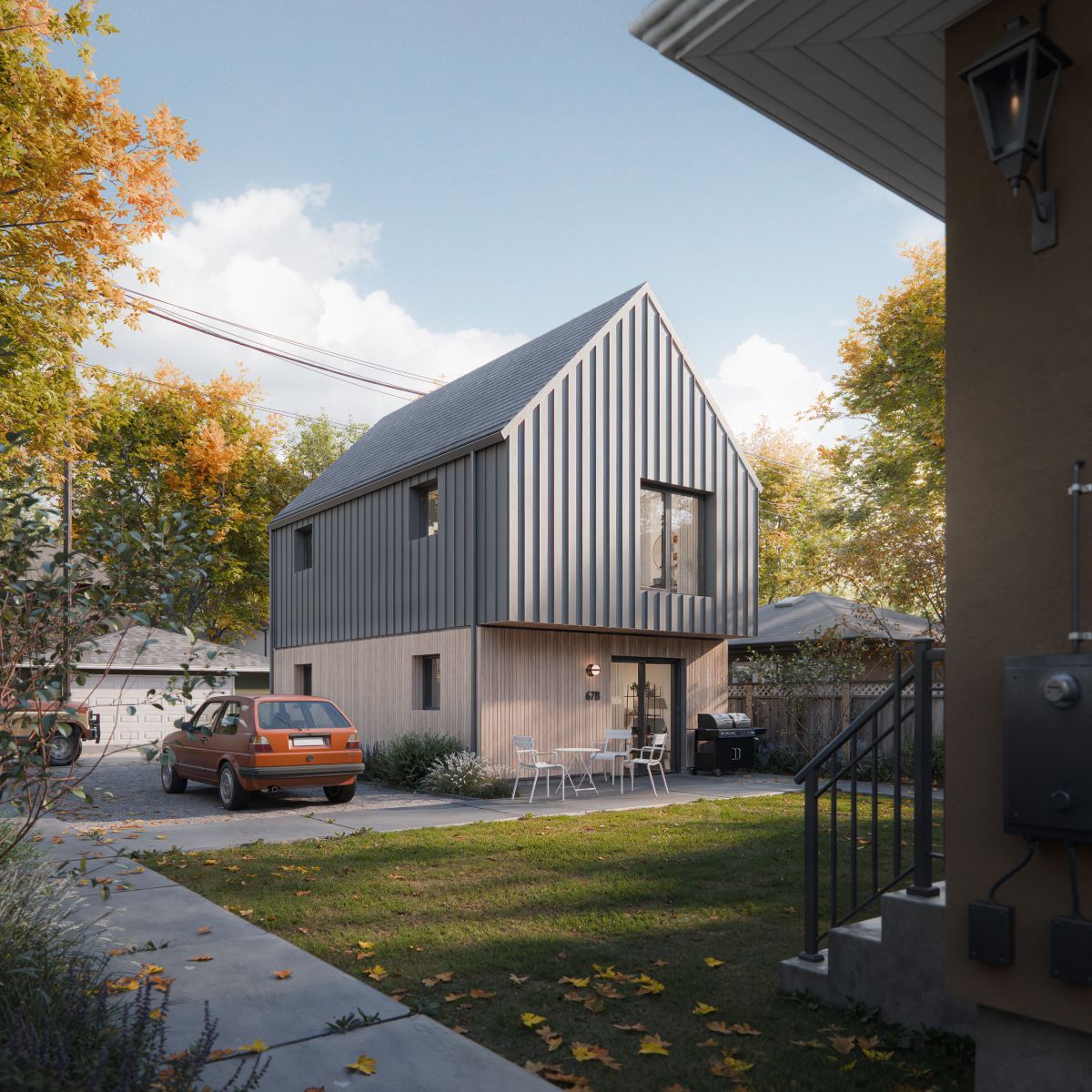

A 3D rendering of a home with a steep gabled roof, metal cladding, and wood paneling. The second floor has a large window, and the ground floor features a glass door leading to a patio with outdoor seating. A parked car and detached garage are visible in the background. In the foreground, two individuals are sitting on the lawn with a picnic setup. The surrounding area includes trees, a paved driveway, and a fenced backyard with a barbecue grill.

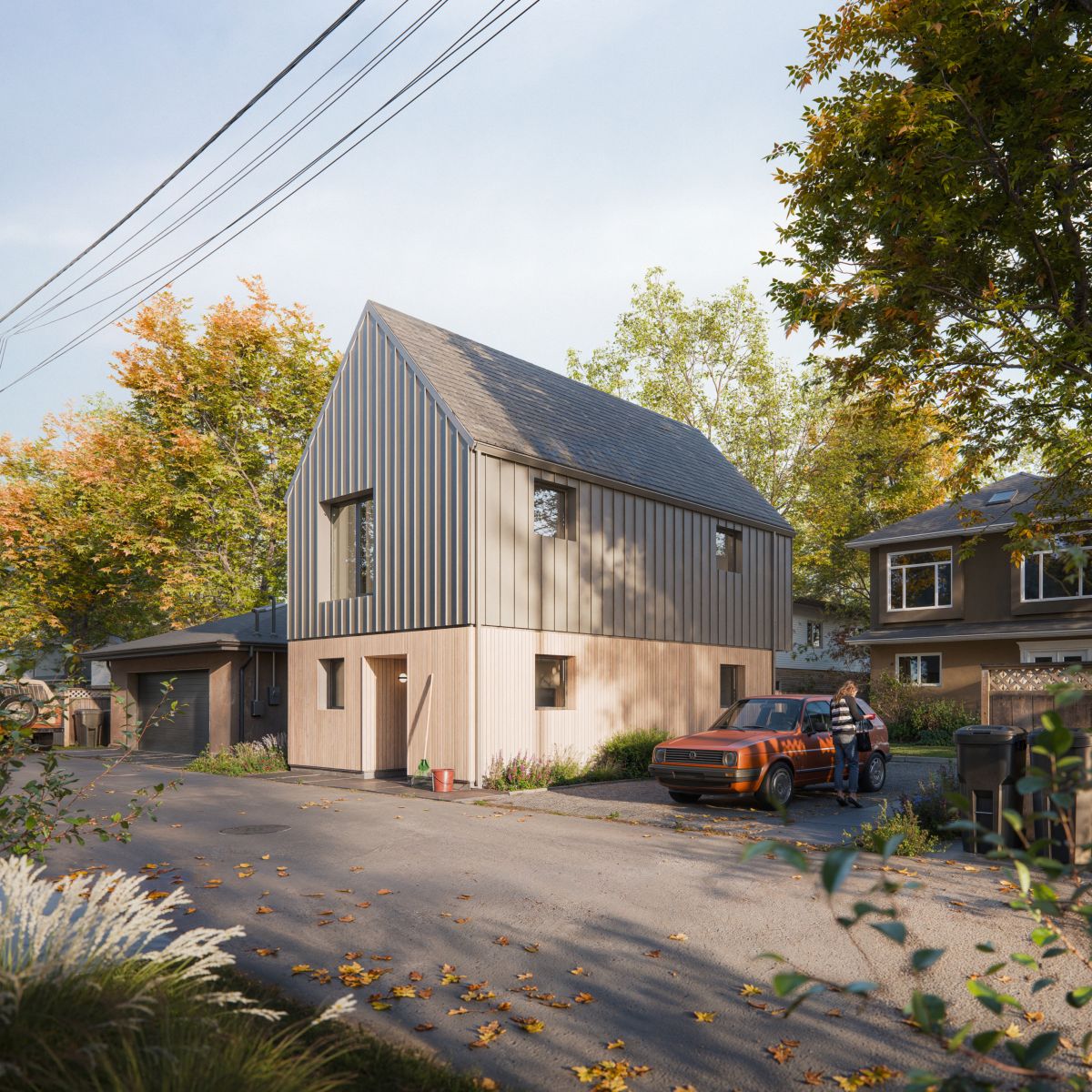

A 3D rendering of a home with a pitched roof, featuring a combination of vertical metal and wood paneling. The structure is situated in a residential neighbourhood.

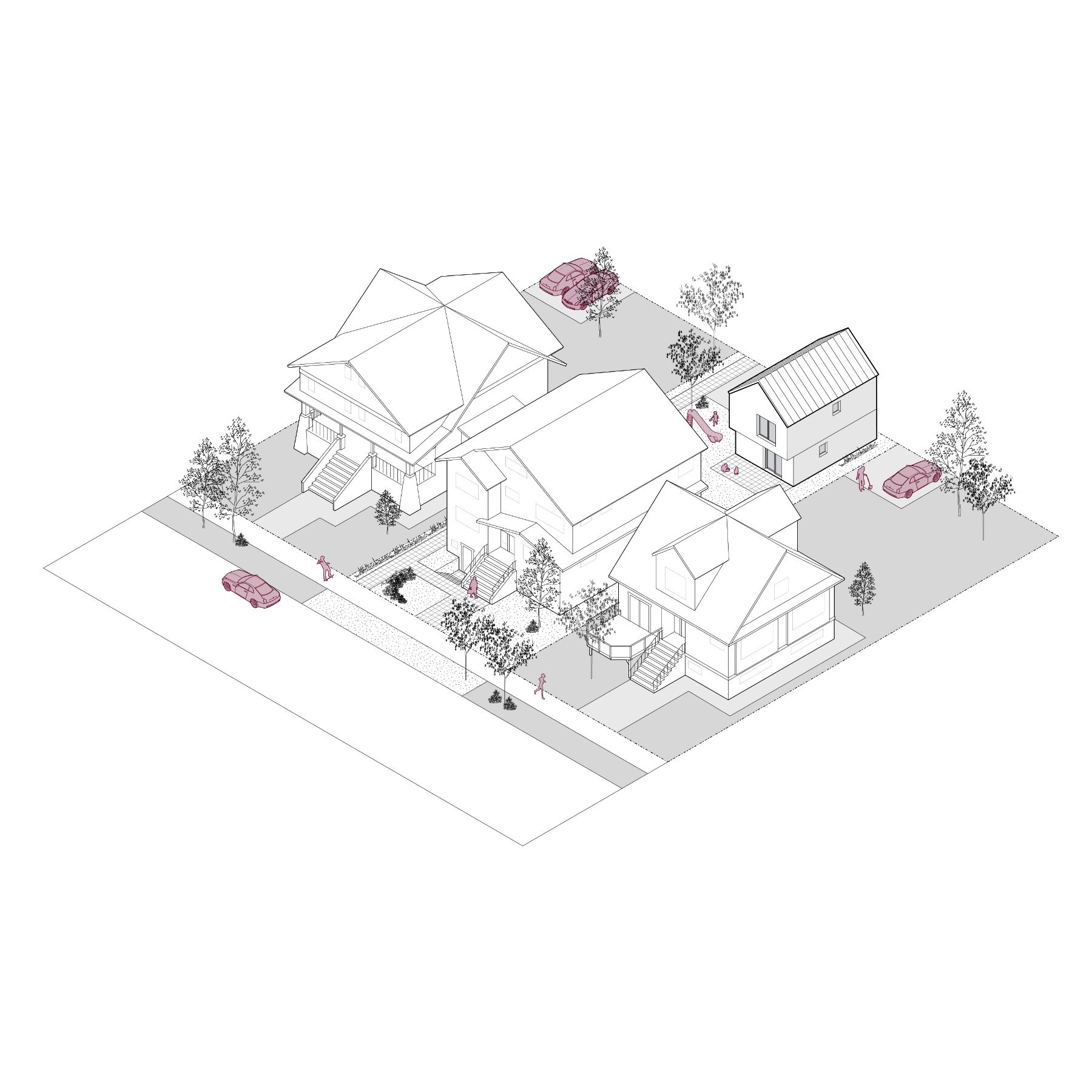

A 3D line rendering of the unit ADU 02, which is approximately 700 square feet. It demonstrates the unit's placement in a neighbourhood, highlighting its compact yet spacious design. The model shows how the unit can be positioned to maximize privacy and natural light.

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. N/A
11. N/A
