Accessory Dwelling Unit 02

NB, NL, NS, PE

Gross Building Area: 78 sq. m. (840 sq. ft)

2 1

2-storey Accessory Dwelling Unit.

Download the summary package to get a high-level plan overview and sign up to be notified when the final architectural design packages are available.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

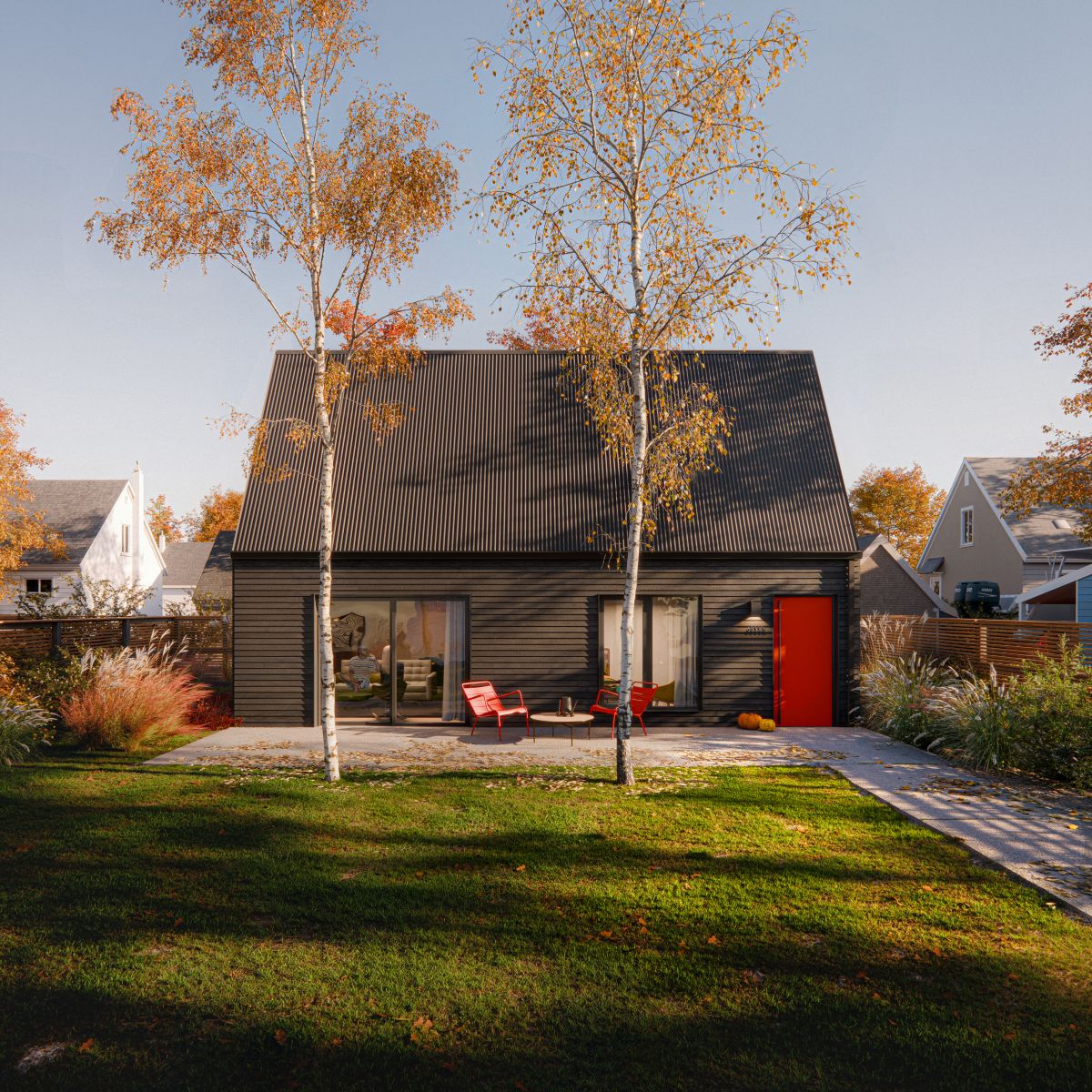

A 3D rendering of a backyard ADU with a striking black exterior and red accents in the Fall. There are large sliding doors open to a patio.

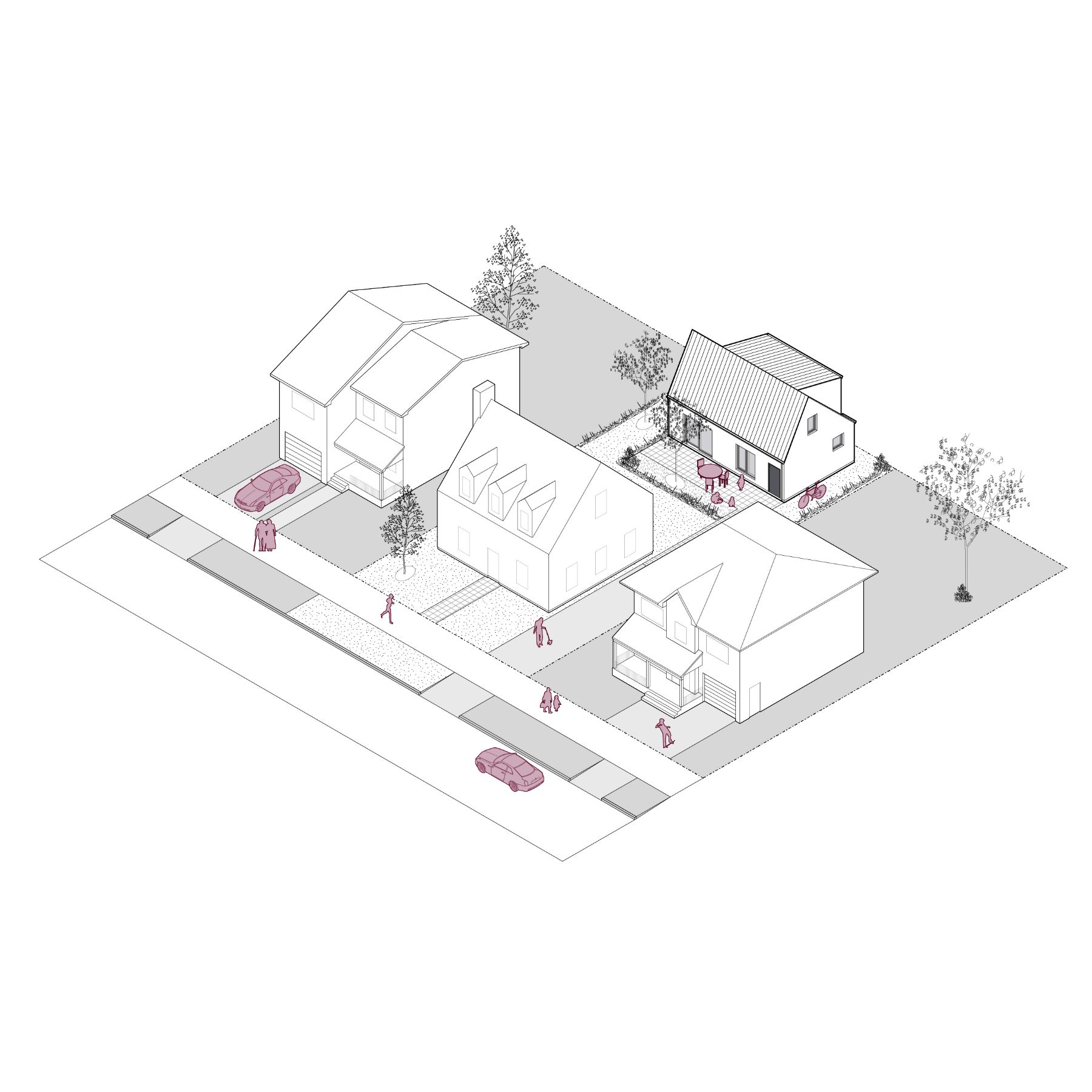

A 3D line rendering of the unit ADU 02, which is approximately 614 square feet. It illustrates the unit’s integration into a neighbourhood, emphasizing its efficient use and two-storey layout. The unit is positioned among neighboring homes, vehicles, sidewalks, and trees, emphasizing its placement within a residential setting.

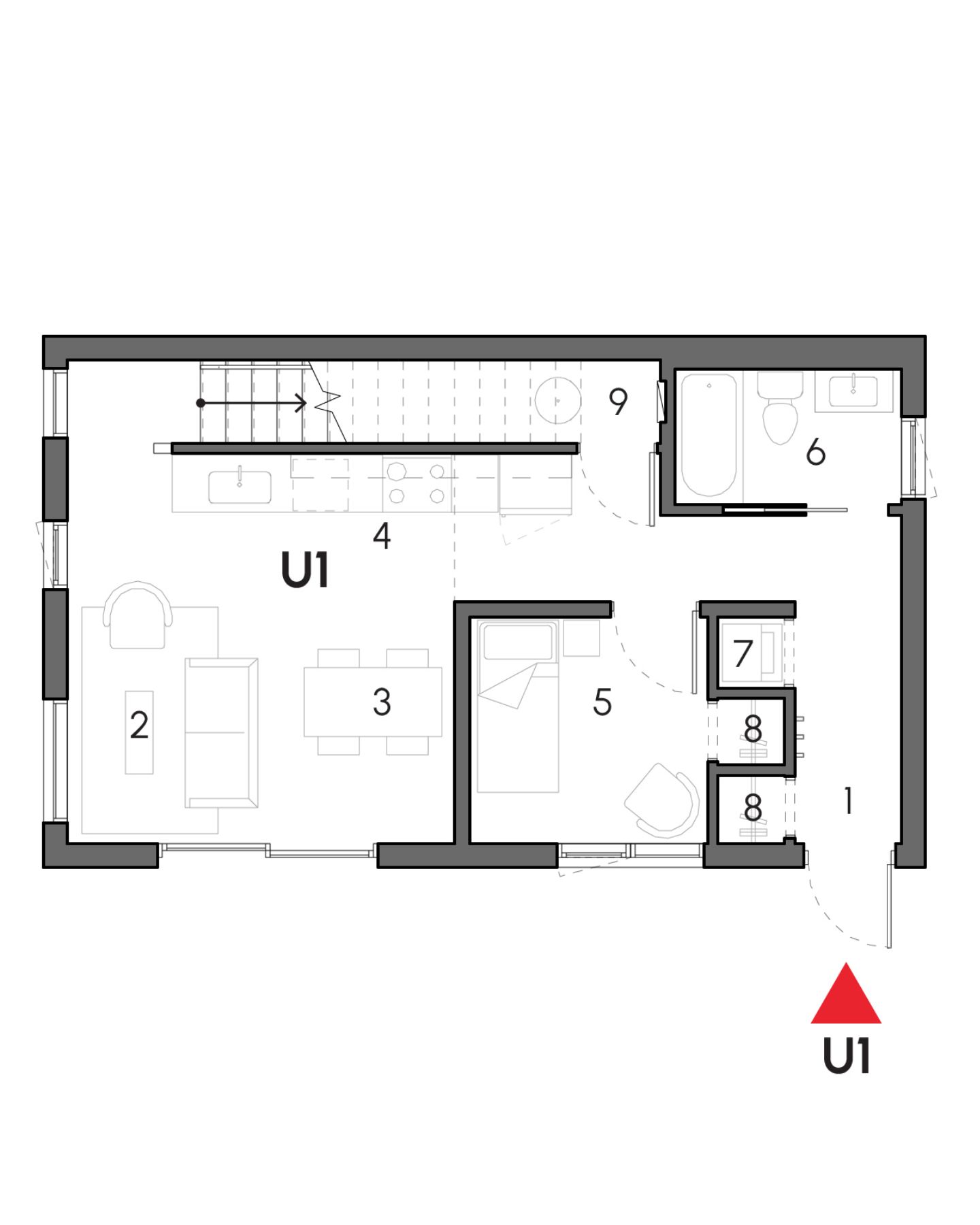

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. N/A
11. Open to below
