Accessory Dwelling Unit 02

AB

Gross Building Area: 128 sq. m. (1374 sq. ft)

1 1

2-storey Accessory Dwelling Unit with a double garage.

Download the summary package to get a high-level plan overview and sign up to be notified when the final architectural design packages are available.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

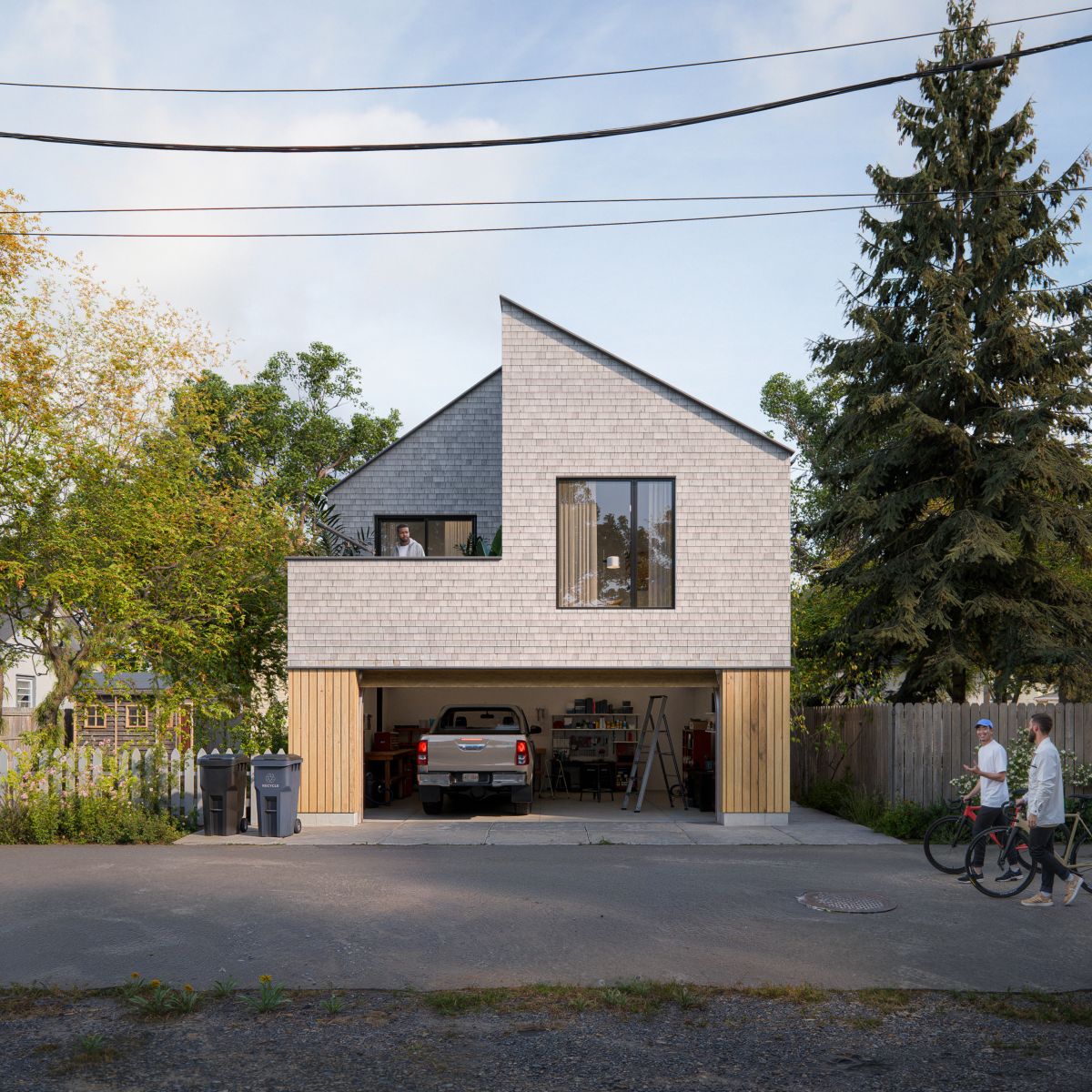

A 3D rendering of a two storey garage with a ADU above. The exterior is light colored shingles with wood accents, featuring an asymmetrical roofline and large windows.

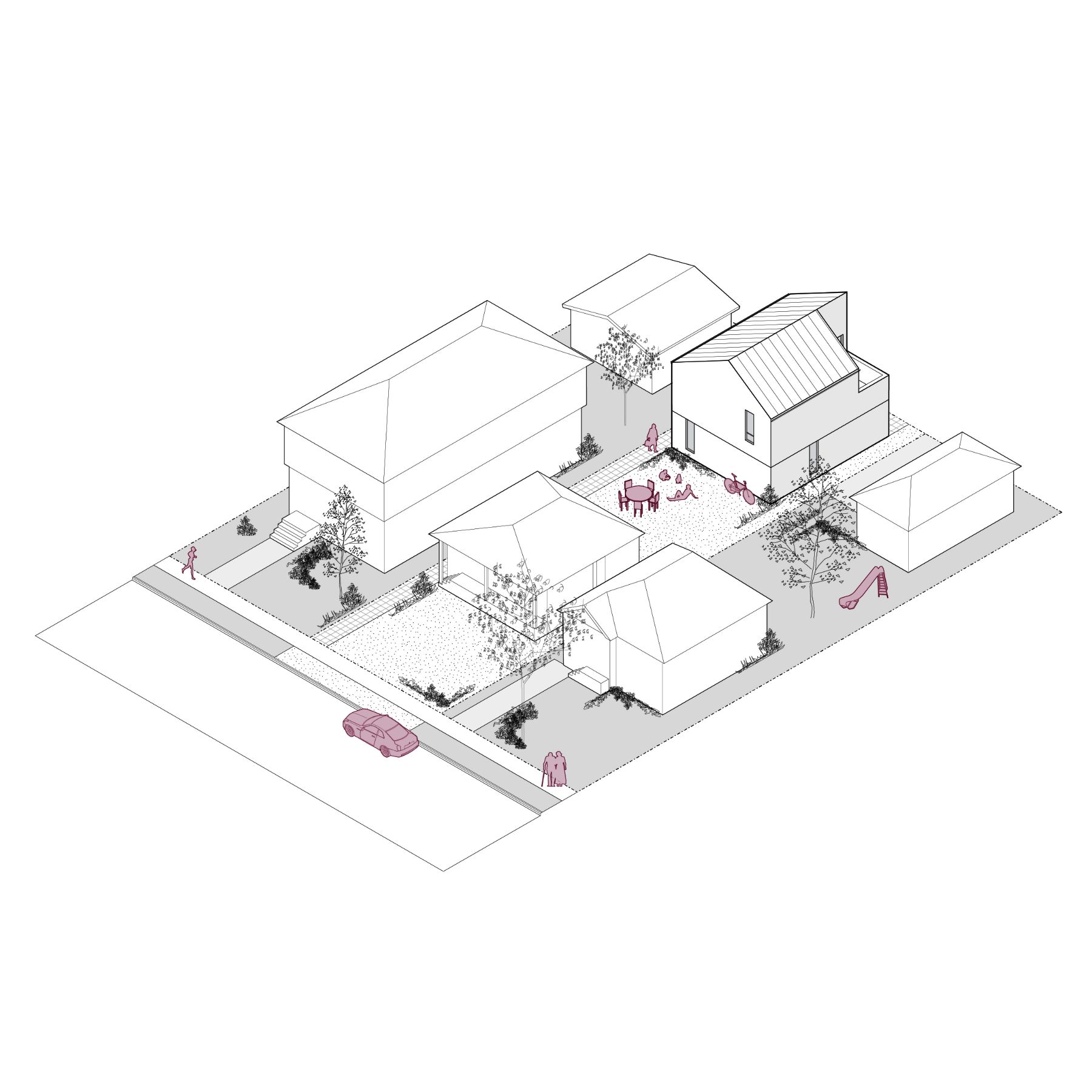

A 3D line rendering of the unit ADU 02, approximately 727 square feet in size. The two-storey structure is shown in a compact neighbourhood setting, surrounded by homes and trees. Its vertical design provides additional living space.

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. Terrace/Patio
11. N/A
