Accessory Dwelling Unit 01

AB

Gross Building Area: 73 sq. m. (784 sq. ft)

2 1

Single-storey Accessory Dwelling Unit, accessible-ready.

Download the summary package to get a high-level plan overview and sign up to be notified when the final architectural design packages are available.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

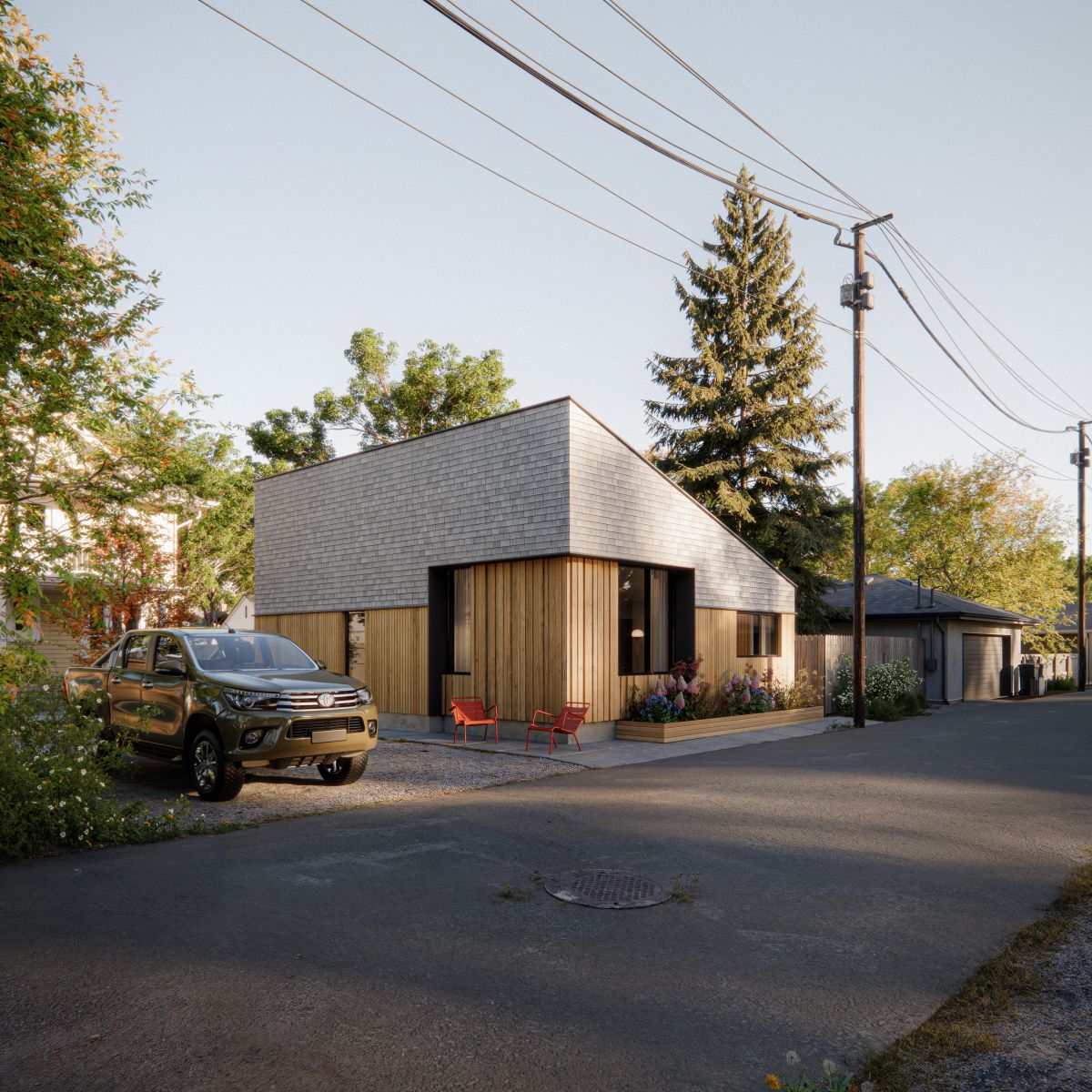

A 3D rendering ofa single storey building with exterior that showcases wooden slats and light gray shingles, large windows.

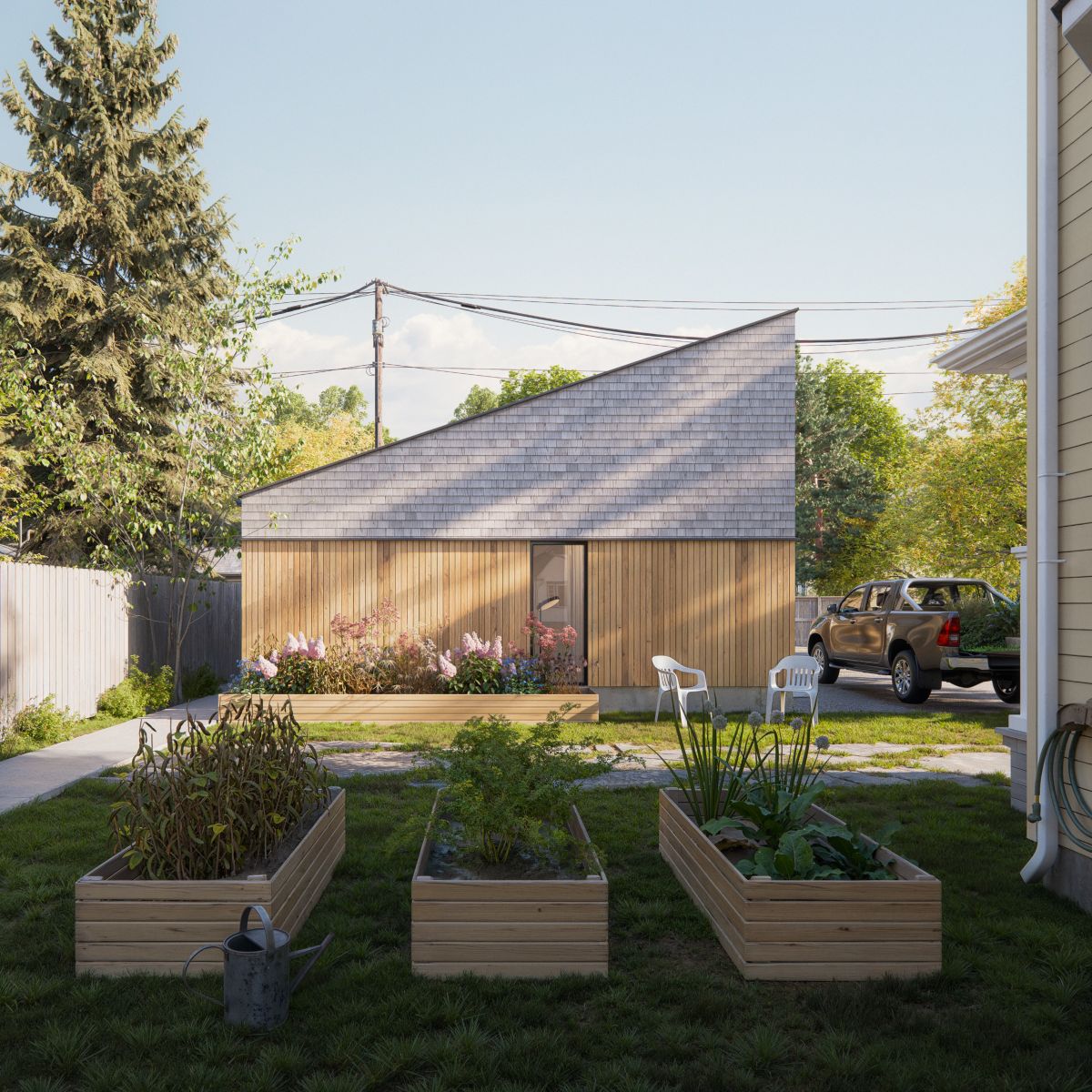

A 3D rendering captures a family enjoying a garden in the backyard of a one storey ADU. The structure's exterior combines wooden panels with a shingled roof.

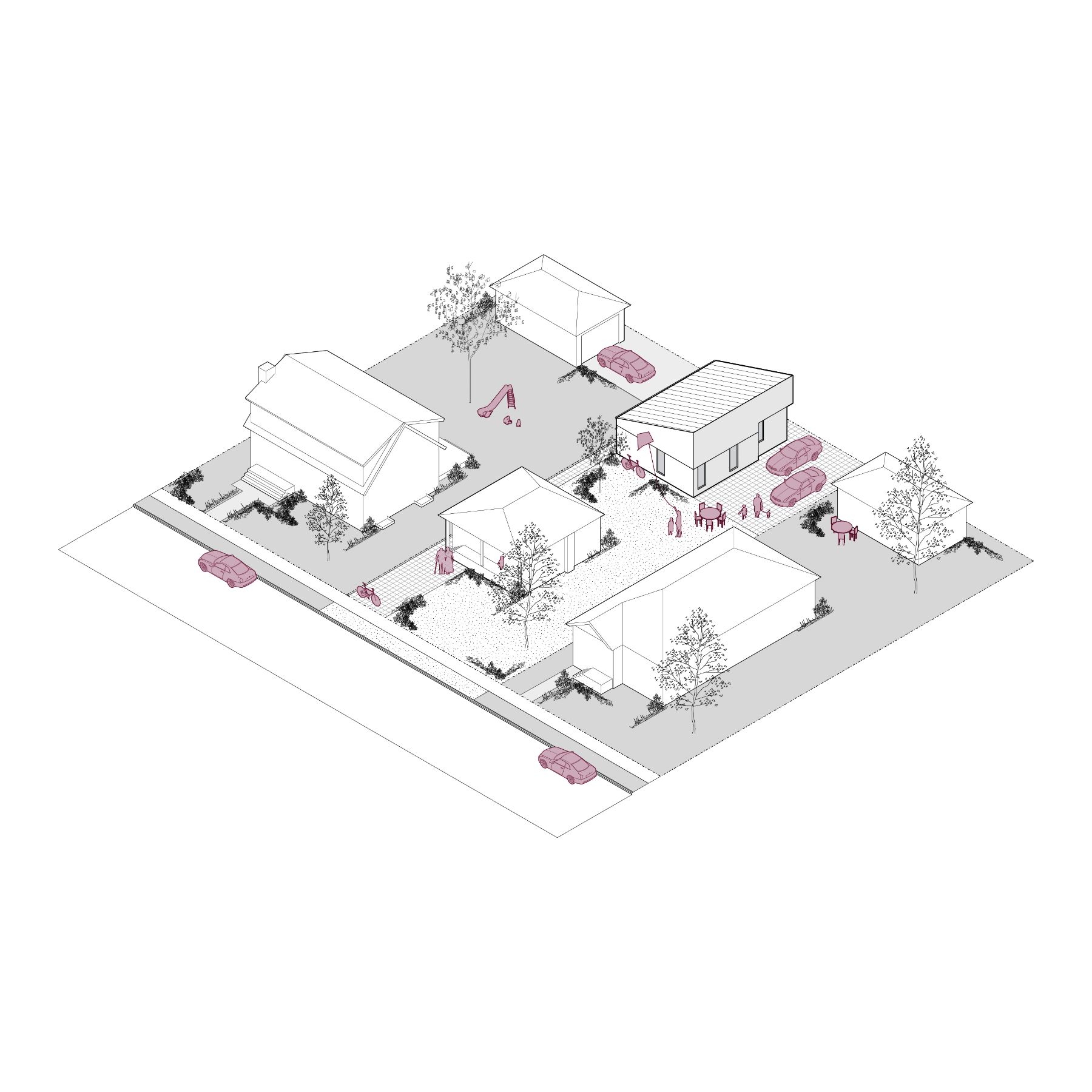

A 3D line rendering of the unit ADU 01, approximately 786 square feet in size. The image highlights its single-storey design, blending seamlessly into a neighbourhood setting with nearby homes.

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. N/A
11. N/A
