Accessory Dwelling Unit 02

QC

Gross Building Area: 114 sq. m. (1230 sq. ft)

2 1

2-storey Accessory Dwelling Unit with a garage.

Download the summary package to get a high-level plan overview and sign up to be notified when the final architectural design packages are available.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

A 3D rendering of a backyard ADU with a concrete facade and a gabled roof.

A 3D rendering of a backyard ADU with a sleek concrete façade, surrounded by autumn trees. The small yard features colorful patio chairs and landscaping.

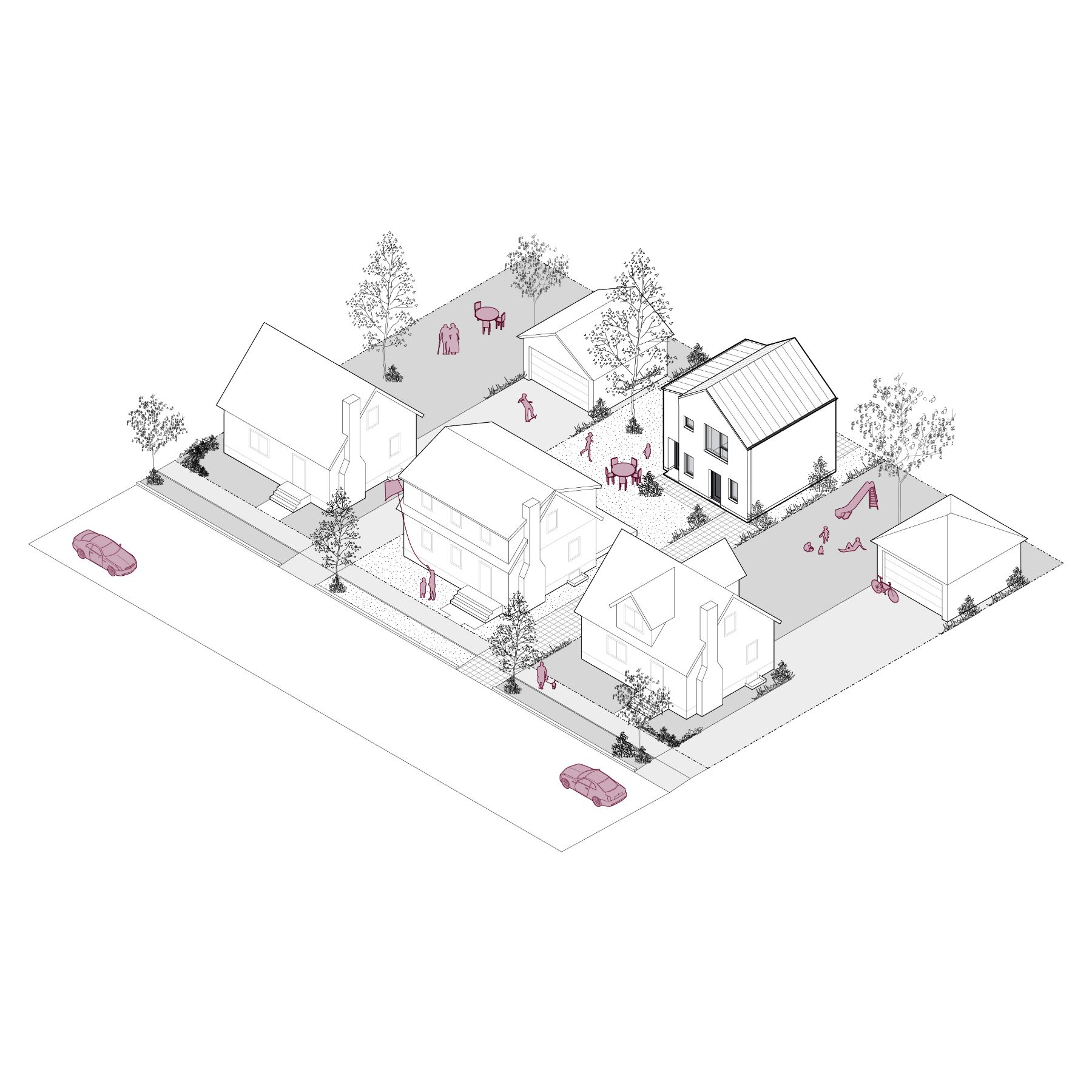

A 3D line rendering of a two-storey accessory dwelling unit (ADU), covering approximately 57.4 sq. m (618 sq. ft.). The image shows the ADU within a residential neighbourhood, surrounded by detached homes, sidewalks, trees, and backyards.

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. N/A
11. N/A
