Duplex

BC

Gross Building Area: 272 sq. m. (2927 sq. ft)

3 2.5 Per unit

Front-back duplex designed to fit on a variety of property sizes including narrower lots.

Download the summary package to get a high-level plan overview and sign up to be notified when the final architectural design packages are available.

Summary package (PDF)
An overview of the design including 3D drawing, building dimensions and a unit summary.

The 3D rendering of the duplex showcases a design with a blend of brick and siding. The exterior features large windows and a t landscaped yard with mature trees and lush greenery.

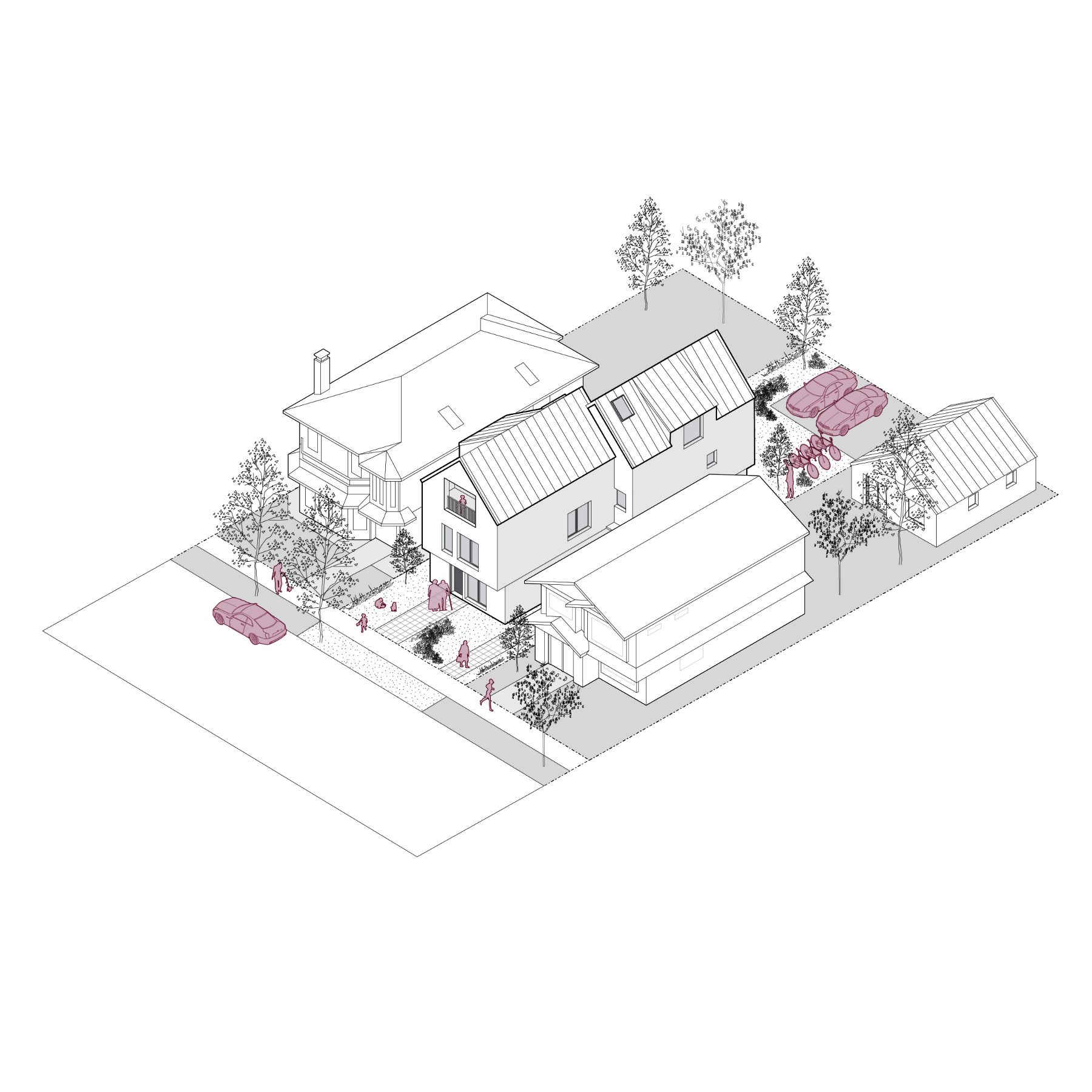

This 3D line representation of the building, allowing you to see the structure from an angled perspective. The image highlights the spatial relationships between different parts of the building, including the exterior walls, roof, and possibly some interior elements.

Floor Plans

Legend:

1. Entry
2. Living
3. Dining
4. Kitchen
5. Bedroom
6. Washroom
7. Laundry
8. Storage
9. Mechanical
10. Terrace/Patio
11. Office
